VOL NXP i.MX6UL/i.MX6ULL SOM

Overview

The VOL NXP i.MX6UL/i.MX6ULL SOM module is a high-performance, ultra-efficient processor featuring an advanced implementation of a single ARM® Cortex®-A7 core, which operates at speeds of 528MHz (i.MX6UL/6ULL), 696MHz (i.MX6UL) and 792MHz (i.MX6ULL) for its variants. Equipped with a wide array of high-speed connectivity, VOL NXP i.MX6UL/i.MX6ULL SOM module is a small footprint hardware platform engineered to support IoT edge devices, smart appliances, wearables, and mobile terminals. Ideally suited for cost and power optimized embedded and industrial applications, this SOM is integrated with onboard PMIC, Flash, DDR3 and Ethernet PHY. It also supports different I/O interfaces like CAN, USB, SDIO, QSPI, SPI, I2C, UART, LCD, ADC, SAI, ESAI, JTAG, PWM, Smart Card interface, and GPIO.

Key Features

  • VOL NXP i.MX6UL/i.MX6ULL with two power-efficient variants:
    • 528MHz ARM® Cortex®-A7 (i.MX6UL/6ULL)
    • 696MHz ARM® Cortex®-A7 (i.MX6UL)
    • 792MHz ARM® Cortex®-A7 (i.MX6ULL)
  • Multi-level Memory System
  • Smart speed technology
  • SO-DIMM 200 Form Factor
  • Dual High-Speed USB 2.0 OTG connectivity
  • In-built RGMII Ethernet PHY and On-board 10/100 Ethernet
  • RoHS compliant

Key Applications

  • Smart Energy Management Systems
  • Industrial Control Systems
  • Portable Wearables
  • IoT Gateways and Connected Devices
  • Electronic Point-of-Sales (ePOS)
  • Telematics
  • Human Machine Interfaces (HMI)

Technical Specifications

ProcessorVOL NXP i.MX6UL Core
VOL NXP i.MX6ULL Core
TechnologyPower efficient 528 MHz (i.MX6UL/6ULL), 696MHz(i.MX6UL) and 792MHz(i.MX6ULL) ARM® Cortex®-A7
Feature VersionG0, G1, G2 and G3 support (i.MX6UL)
Y0, Y1 and Y2 support (i.MX6ULL)
OS SupportLinux: Yocto, Ubuntu
CompatibilityMikroBUS compatible
PowerPower Supply Range: DC 3.3V – 5V (Typical – 5V)
Current requirement – maximum 3A
DDR3L DRAM256MB (upgradable up to 1GB)
NAND Flash1GB (upgradable up to 4GB)
eMMC4GB (upgradable up to 16GB)
EEPROM 4KB
CAN2x interface, FLEXCAN standard based on CAN 2.0B protocol specifications
USB2x interface, high-speed OTG 2.0 modules with integrated HS USB PHYs
SDIO2x interface, uSDHC based 1-bit or 4-bit transfer mode specifications for SDIO cards up to UHS-I SDR104 mode with maximum speed support of 104 MB/s
QSPI1x interface, Single Data Rate/Double Data Rate mode of operation at 100MHz with DMA support, multi-master access with priority and flexible, configurable buffer for each master
I2C4x interface, 100KHz to 400KHz clock rates
SPI4x interface, full-duplex enhanced Synchronous Serial Interface, with data rate up to 52 Mbit/s. configurable as Master/Slave modes
UART8x interface, programmable baud rates up to 5 Mbps with 32-byte FIFO on Tx and 32 half-word FIFO on Rx supporting auto-baud
ADC2x interface, 12-bit general purpose analog to digital converter
SPDIF1x standard, audio file transfer format, Sony Philips Digital Interconnect Format (SPDIF)
SAI3x interface, full duplex serial interfaces with frame synchronization, such as I2S, AC97, TDM,
and codec/DSP interfaces
ESAI1x interface, full-duplex serial port, 32 words
(time slots) per period with a variety of serial devices (i.MX6ULL)
JTAG1x interface, production, testing and debugging with JTAG TAP standard
SIMv22x interface, compliant with ISO7816 (i.MX6UL)
GPMI1x interface, 8x NAND devices support and 40-bit ECC encryption/decryption for NAND Flash Controller
Camera1x interface, up to 24 bit,133.3 MHz
(i.MX6UL) and 148.5 MHz (i.MX6ULL) pixel clock with BT.656 interface support
Display Resolution24 bit parallel RGB interface based LCD
Max. 85 MHz display clock and up to 1366 x 768 WXGA at 60Hz (i.MX6UL)
150 MHz pixel clock and smart asynchronous parallel MPU interface support (i.MX6ULL)
eFusesYes
RNGYes
Secure RTCYes
DimensionsL x W x H – 67.6 mm x 45.0 mm x 4.5 mm
Operating TemperatureCommercial: 0 to +70 °C
Industrial: -40 to +85 °C
Automotive: -40 to +125 °C
RoHSCompliant
CEYes
ICYes
FCCYes
Processor VOL NXP i.MX6UL Core
VOL NXP i.MX6ULL Core
Technology Power efficient 528 MHz (i.MX6UL/6ULL), 696MHz(i.MX6UL) and 792MHz(i.MX6ULL) ARM® Cortex®-A7
Feature Version G0, G1, G2 and G3 support (i.MX6UL)
Y0, Y1 and Y2 support (i.MX6ULL)
OS Support Linux: Yocto, Ubuntu
Compatibility MikroBUS compatible
Power Power Supply Range: DC 3.3V - 5V (Typical - 5V)
Current requirement - maximum 3A
DDR3L DRAM 256MB (upgradable up to 1GB)
NAND Flash 1GB (upgradable up to 4GB)
eMMC 4GB (upgradable up to 16GB)
EEPROM  4KB
CAN 2x interface, FLEXCAN standard based on CAN 2.0B protocol specifications
USB 2x interface, high-speed OTG 2.0 modules with integrated HS USB PHYs
SDIO 2x interface, uSDHC based 1-bit or 4-bit transfer mode specifications for SDIO cards up to UHS-I SDR104 mode with maximum speed support of 104 MB/s
QSPI 1x interface, Single Data Rate/Double Data Rate mode of operation at 100MHz with DMA support, multi-master access with priority and flexible, configurable buffer for each master
I2C 4x interface, 100KHz to 400KHz clock rates
SPI 4x interface, full-duplex enhanced Synchronous Serial Interface, with data rate up to 52 Mbit/s. configurable as Master/Slave modes
UART 8x interface, programmable baud rates up to 5 Mbps with 32-byte FIFO on Tx and 32 half-word FIFO on Rx supporting auto-baud
ADC 2x interface, 12-bit general purpose analog to digital converter
SPDIF 1x standard, audio file transfer format, Sony Philips Digital Interconnect Format (SPDIF)
SAI 3x interface, full duplex serial interfaces with frame synchronization, such as I2S, AC97, TDM, and codec/DSP interfaces
ESAI 1x interface, full-duplex serial port, 32 words (time slots) per period with a variety of serial devices (i.MX6ULL)
JTAG 1x interface, production, testing and debugging with JTAG TAP standard
SIMv2 2x interface, compliant with ISO7816 (i.MX6UL)
GPMI 1x interface, 8x NAND devices support and 40-bit ECC encryption/decryption for NAND Flash Controller
Camera 1x interface, up to 24 bit,133.3 MHz (i.MX6UL) and 148.5 MHz (i.MX6ULL) pixel clock with BT.656 interface support
Display Resolution 24 bit parallel RGB interface based LCD
Max. 85 MHz display clock and up to 1366 x 768 WXGA at 60Hz (i.MX6UL)
150 MHz pixel clock and smart asynchronous parallel MPU interface support (i.MX6ULL)
eFuses Yes
RNG Yes
Secure RTC Yes
Dimensions L x W x H – 67.6 mm x 45.0 mm x 4.5 mm
Operating Temperature Commercial: 0 to +70 °C
Industrial: -40 to +85 °C
Automotive: -40 to +125 °C
RoHS Compliant
CE Yes
IC Yes
FCC Yes

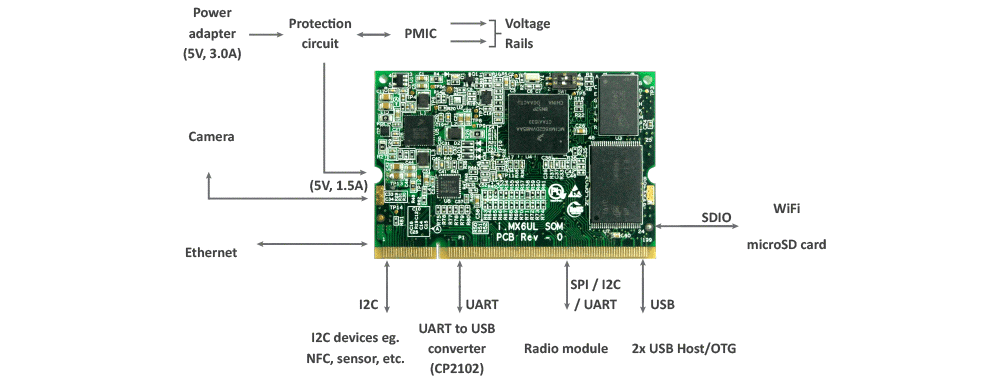

Hardware Design

VOLANSYS-Hardware-Design-VOL-NXP-i.MX6ULi.MX6ULL-SOM

Nomenclature
